Example of re-mode 2

Example of re-mode 2

Administrator 52 3/7/2022 7:13:45 PM ID:808e1ogQg1UD8000000

Transplant the [Hempen Camise] of the Aura female to the Miqo'te female. The operation of Virtual Reality Studio is explained in simplified form, so please refer to [ Example of re-model ] for detailed instructions.

▲ / ▼

Administrator 3/7/2022 7:15:33 PM ID:80te1ogQgQDDtD00000

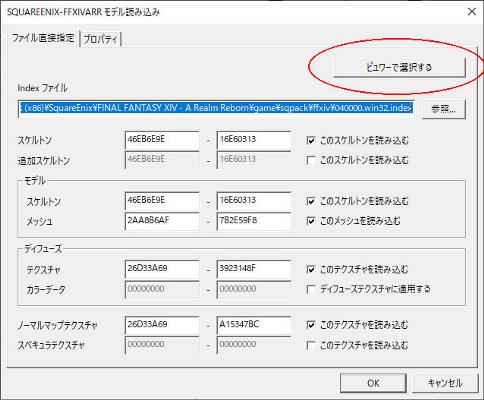

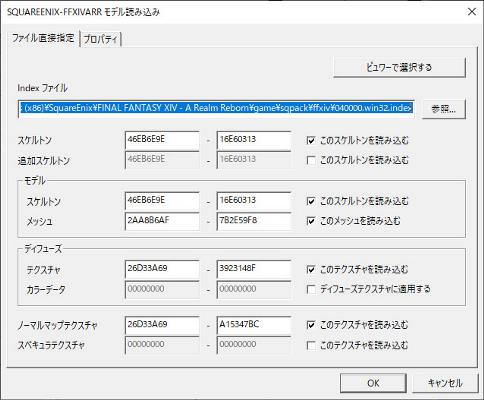

Load Miqo'te female [Hempen Camise].

Index file : (ffxiv install folder)\game\sqpack\ffxiv\040000.win32.index
Skeleton : 46EB6E9E-16E60313
[Model] Skeleton : 46EB6E9E-16E60313
[Model] Mesh : 2AA8B6AF-7B2E59F8
[Diffuse] Texture : 26D33A69-3923148F
Normal map texture: 26D33A69-A15347BC

Administrator 3/7/2022 7:17:23 PM ID:80te1ogQg4pUQD00000

Select the model [FFXIVARR] in the <Schematic> window.

Administrator 3/7/2022 7:17:45 PM ID:80te1ogQg4UJpD00000

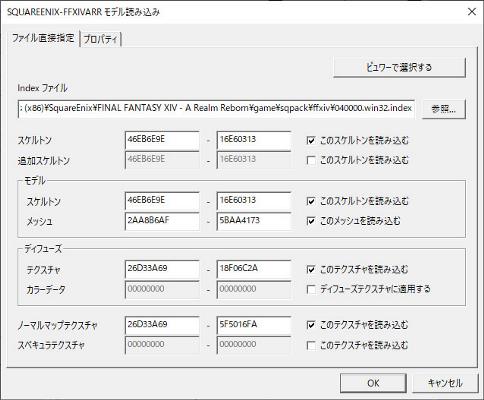

Load Aura female [Hempen Camise].

Index file : (ffxiv install folder)\game\sqpack\ffxiv\040000.win32.index
Skeleton : 46EB6E9E-16E60313
[Model] Skeleton : 46EB6E9E-16E60313
[Model] Mesh : 2AA8B6AF-5BAA4173
[Diffuse] Texture : 26D33A69-18F06C2A
Normal map texture: 26D33A69-5F5016FA

Administrator 3/7/2022 7:18:05 PM ID:80te1ogQgGtLAD00000

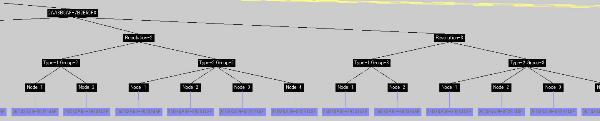

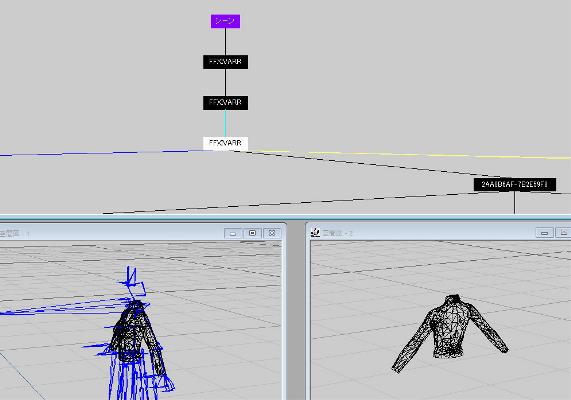

The <Schematic> window will look like this.

Administrator 3/7/2022 7:18:20 PM ID:80te1ogQgGXj9D00000

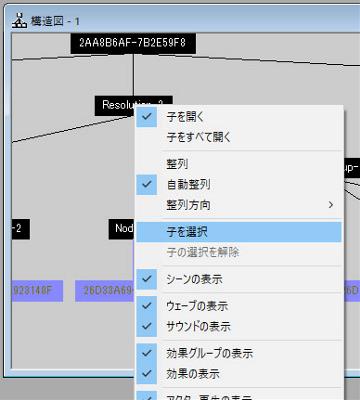

In the <Schematic> window, right mouse click on [2AA8B6AF-7B2E59F8]-[Resolution-2] and select [Child select].

Administrator 3/7/2022 7:18:34 PM ID:80te1ogQgG4Ol000000

Everything below [Resolution-2] will be selected.

Do this for [2AA8B6AF-7B2E59F8]-[Resolution-3], [2AA8B6AF-5BAA4173]-[Resolution-2] and [2AA8B6AF-5BAA4173]-[Resolution-3].

Administrator 3/7/2022 7:18:48 PM ID:80te1ogQgGbWA000000

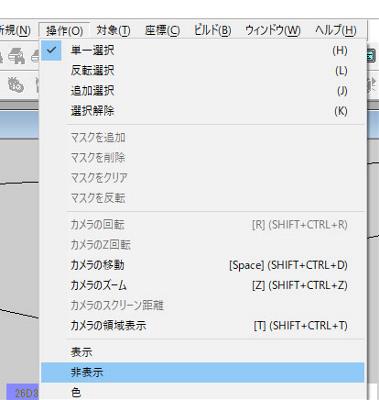

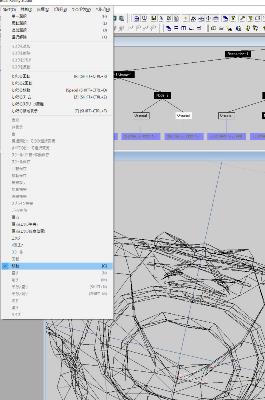

Select [Hide] from the operation menu.

Administrator 3/7/2022 7:19:06 PM ID:80te1ogQgult9000000

Select [Clear select] from the Edit menu.

Administrator 3/7/2022 7:19:22 PM ID:80te1ogQgupwQD00000

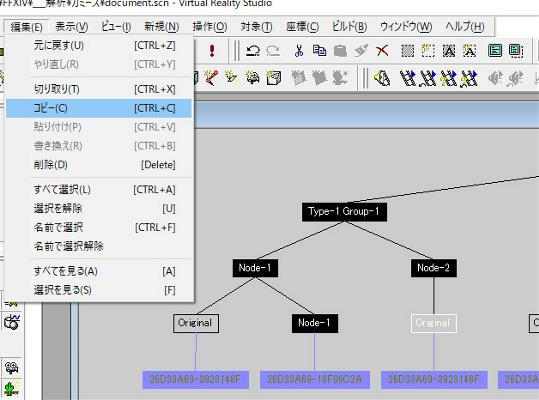

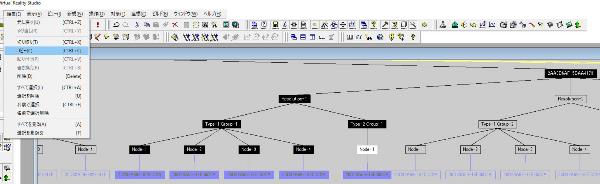

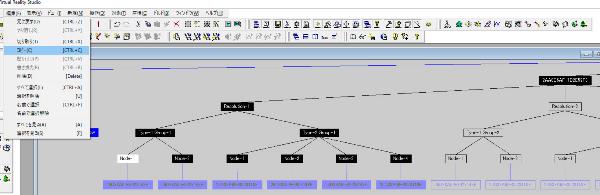

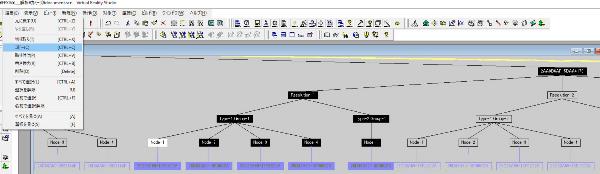

In the <Schematic> window, select [2AA8B6AF-7B2E59F8]-[Resolution-1]-[Type-1 Group-1]-[Node-1] and choose [Copy] from the Edit menu.

Administrator 3/7/2022 7:19:36 PM ID:80te1ogQguGWO000000

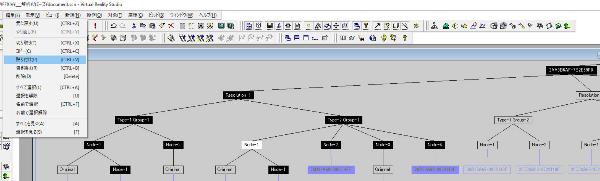

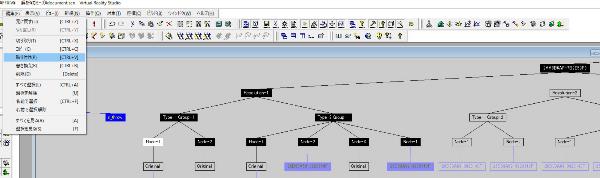

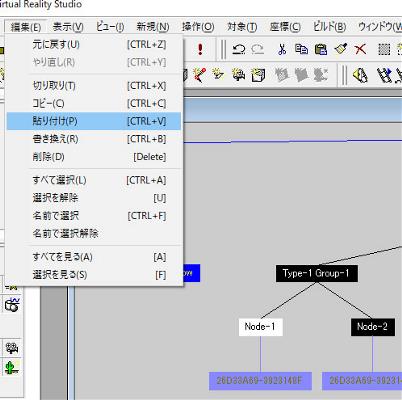

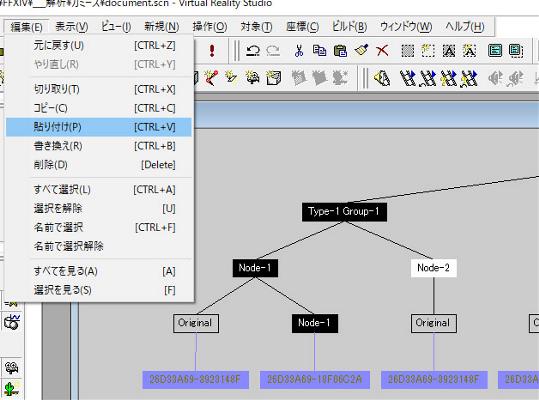

Select [Paste] from the Edit menu.

Administrator 3/7/2022 7:19:57 PM ID:80te1ogQgunbi000000

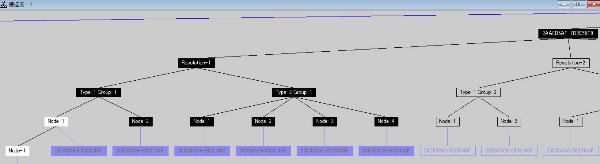

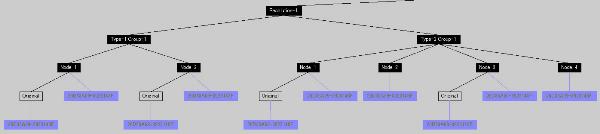

The <Schematic> window will look like this.

Administrator 3/7/2022 7:20:13 PM ID:80te1ogQgLg9k000000

Hide the pasted [Node-1] and set its name to Original.

Administrator 3/7/2022 7:20:29 PM ID:80te1ogQgLOadD00000

Do this for [2AA8B6AF-7B2E59F8]-[Resolution-1]-[Type-1 Group-1]-[Node-2] and [2AA8B6AF-7B2E59F8]-[Resolution-1]-[Type-2 Group-1]-[Node-1] and [2AA8B6AF-7B2E59F8]-[Resolution-1]-[Type-2 Group-1]-[Node-3].

Administrator 3/7/2022 7:20:47 PM ID:80te1ogQgL9GAD00000

Select [2AA8B6AF-7B2E59F8]-[Resolution-1]-[Type-1 Group-1]-[Node-1].

Administrator 3/7/2022 7:21:05 PM ID:80te1ogQgdt9LD00000

Select all Vertex in the <Perspective> window.

Administrator 3/7/2022 7:21:34 PM ID:80te1ogQgd4Xw000000

Select [Delete] from the Edit menu.

Administrator 3/7/2022 7:21:57 PM ID:80te1ogQgdnD1000000

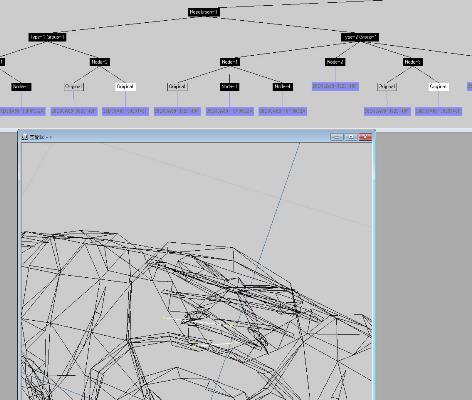

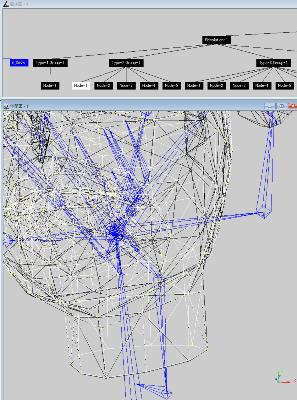

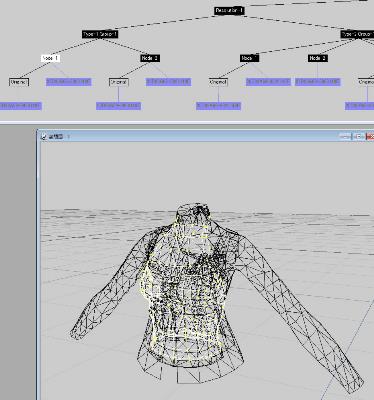

The <Schematic> window and the <Perspective> window will look like this.

Administrator 3/7/2022 7:22:20 PM ID:80te1ogQgUXgL000000

Administrator 3/7/2022 7:22:38 PM ID:80te1ogQgUulwD00000

Select [2AA8B6AF-5BAA4173]-[Resolution-1]-[Type-2 Group-1]-[Node-1] in the <Schematic> window and select [Copy] from the Edit menu.

Administrator 3/7/2022 7:22:52 PM ID:80te1ogQgUAgW000000

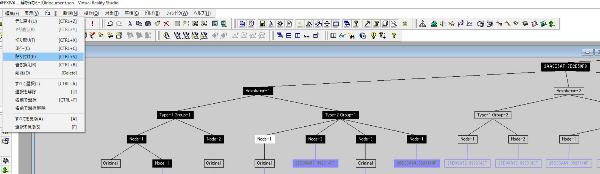

Select [2AA8B6AF-7B2E59F8]-[Resolution-1]-[Type-1 Group-1]-[Node-1] in the <Schematic> window and select [Paste] from the Edit menu.

Administrator 3/7/2022 7:23:08 PM ID:80te1ogQg9Wg8D00000

Select [2AA8B6AF-5BAA4173]-[Resolution-1]-[Type-1 Group-1]-[Node-1] in the <Schematic> window and select [Copy] from the Edit menu.

Administrator 3/7/2022 7:23:41 PM ID:80te1ogQg9Lu1D00000

Select [2AA8B6AF-7B2E59F8]-[Resolution-1]-[Type-2 Group-1]-[Node-1] in the <Schematic> window and select [Paste] from the Edit menu.

Administrator 3/7/2022 7:23:55 PM ID:80te1ogQg9Nbr000000

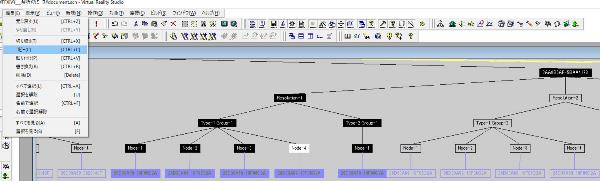

Select [2AA8B6AF-5BAA4173]-[Resolution-1]-[Type-1 Group-1]-[Node-4] in the <Schematic> window and select [Copy] from the Edit menu.

Administrator 3/7/2022 7:27:45 PM ID:80te1ogQgNUio000000

Select [2AA8B6AF-7B2E59F8]-[Resolution-1]-[Type-2 Group-1]-[Node-1] in the <Schematic> window and select [Paste] from the Edit menu.

Administrator 3/7/2022 7:27:59 PM ID:80te1ogQgNJNQ000000

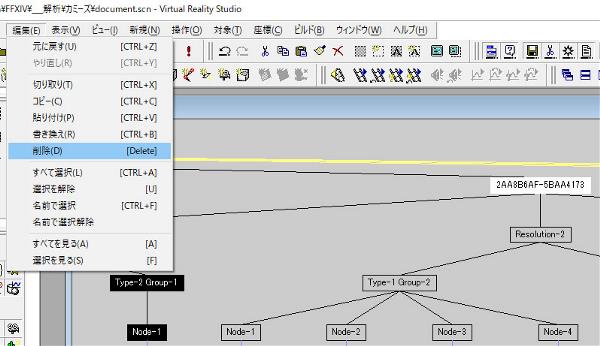

Select [2AA8B6AF-5BAA4173] in the <Schematic> window and choose [Delete] from the Edit menu.

Administrator 3/7/2022 7:28:13 PM ID:80te1ogQgngau000000

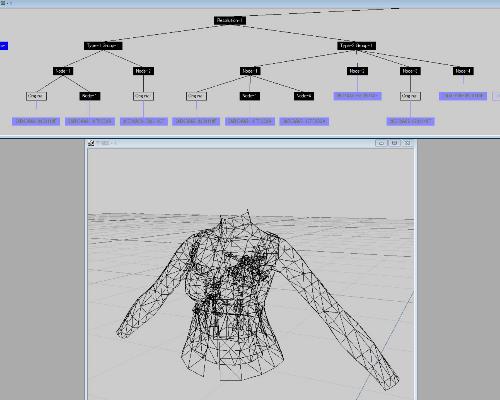

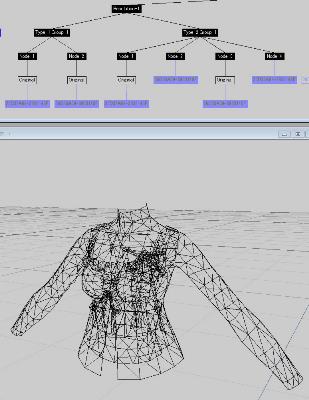

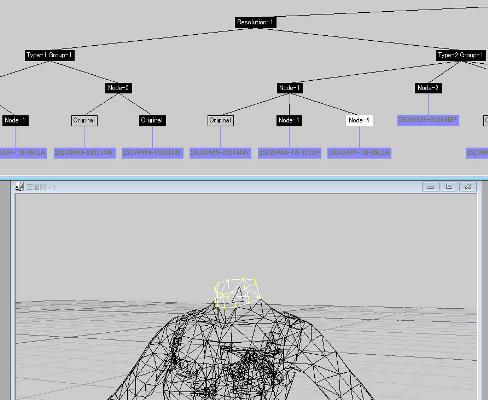

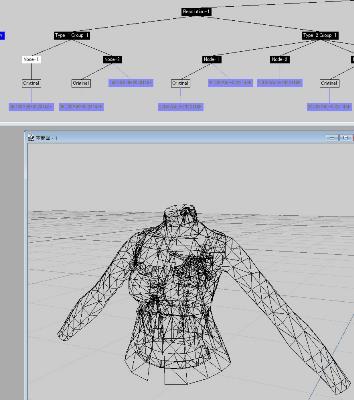

The <Schematic> window and the <Perspective> window will look like this.

Administrator 3/7/2022 7:28:27 PM ID:80te1ogQgn1LDD00000

Select [Type-1 Group-1]-[Node-2]-[Original] in the <Schematic> window and choose [Copy] from the Edit menu.

Administrator 3/7/2022 7:28:41 PM ID:80te1ogQgnLD8000000

Select [Type-1 Group-1]-[Node-2] in the <Schematic> window and select [Paste] from the Edit menu.

Administrator 3/7/2022 7:28:56 PM ID:80te1ogQgnnkGD00000

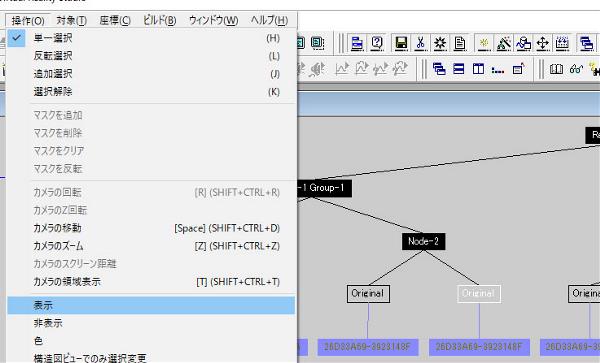

Select [Type-1 Group-1]-[Node-2]-[Original] (the one you pasted) in the <Schematic> window and select [Show] from the Operation menu.

Administrator 3/7/2022 7:29:30 PM ID:80te1ogQgJQt8000000

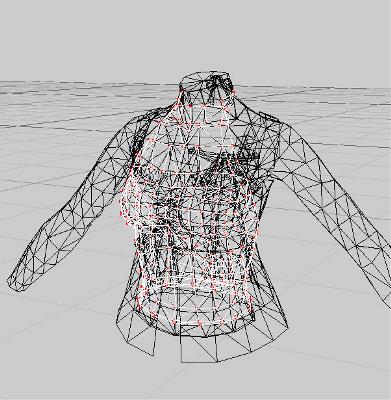

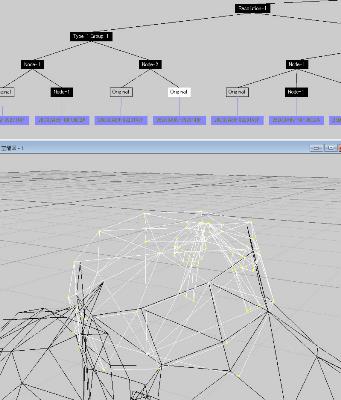

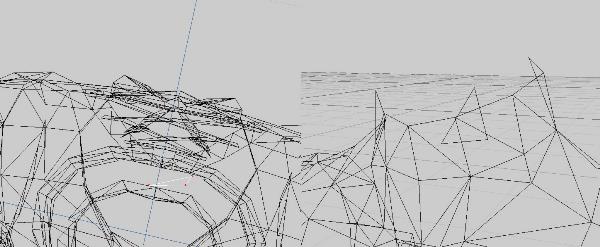

You can see that it is a polygon of the neck in the <Perspective> window.

Administrator 3/7/2022 7:30:02 PM ID:80te1ogQgi8OnD00000

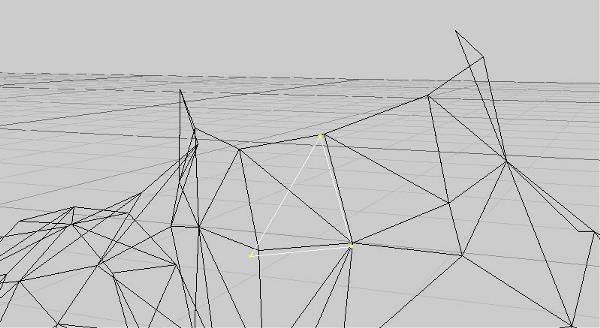

Select a Vertex in the <Perspective> window and delete it to have only one polygon.

Administrator 3/7/2022 7:35:24 PM ID:80te1ogQrlkWa000000

Select the three Vertex of the polygon and choose "Move" from the Operation menu.

Administrator 3/7/2022 7:38:34 PM ID:80te1ogQrg4Qu000000

Select [X Move],[Y Move],[Z Move] from the Coordinate menu.

Administrator 3/7/2022 7:38:50 PM ID:80te1ogQrgalbD00000

Move the vertex to a location where the polygon can be hidden inside the body. The location can be anywhere, as long as it can be hidden.

Administrator 3/7/2022 7:39:17 PM ID:80te1ogQrrw4UD00000

This operation is also performed for [Type-2 Group-1]-[Node-3]-[Original].

Administrator 3/7/2022 7:40:00 PM ID:80te1ogQrw0XaD00000

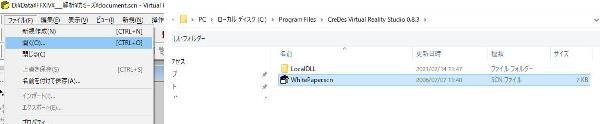

Open WhitePaper.scn in the folder where you installed Virtual Reality Studio.

Administrator 3/7/2022 7:42:04 PM ID:80te1ogQrXtO8D00000

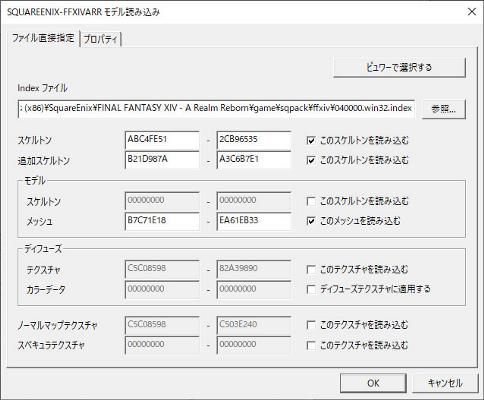

Load the [head] of Miqo'te.

Index file : (ffxiv install folder)\game\sqpack\ffxiv\040000.win32.index
Skeleton : ABC4FE51-2CB96535
Add skeleton : B21D987A-A3C6B7E1
[Model] Mesh : B7C71E18-EA61EB33

Administrator 3/7/2022 7:42:18 PM ID:80te1ogQrXjWL000000

Select [Resolution-1]-[Type-2 Group-1]-[Node-1] in the <Schematic> window.

Administrator 3/7/2022 7:42:32 PM ID:80te1ogQrXDt8000000

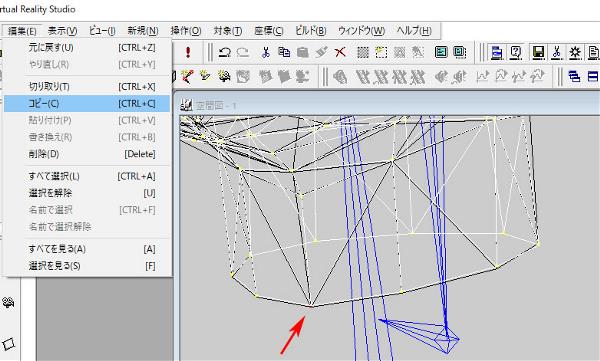

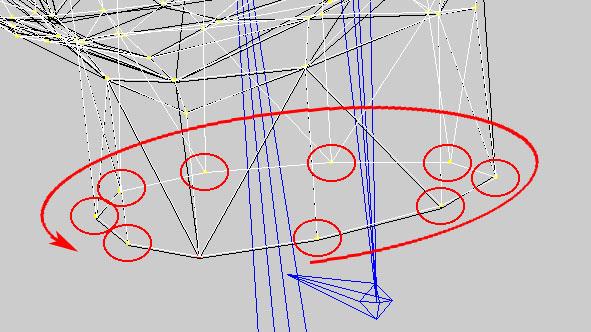

Select one of the neck vertices in the <Perspective> window and choose [Copy] from the Edit menu.

Administrator 3/7/2022 7:42:53 PM ID:80te1ogQrXAdQ000000

Open Notepad and select [Paste].

Administrator 3/7/2022 7:43:07 PM ID:80te1ogQrplaQ000000

This operation is performed on all the Vertex of the neck.

Administrator 3/7/2022 7:43:20 PM ID:80te1ogQrpXlg000000

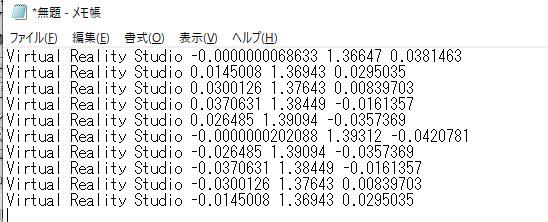

A list of the Vertex coordinates of the neck is created in Notepad.

Administrator 3/7/2022 7:43:32 PM ID:80te1ogQrpDkX000000

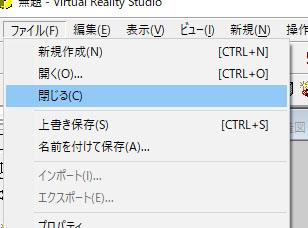

Closes the scene.

Administrator 3/7/2022 7:43:45 PM ID:80te1ogQrpUbWD00000

Loads a saved scene.

Select [Type-2 Group-1]-[Node-1]-[Node-4] in the <Schematic> window.

Administrator 3/7/2022 7:44:01 PM ID:80te1ogQrk0br000000

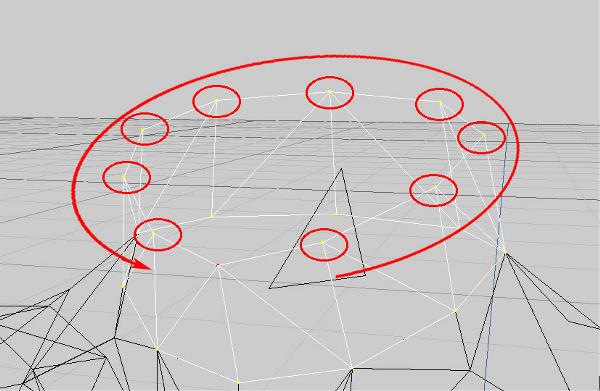

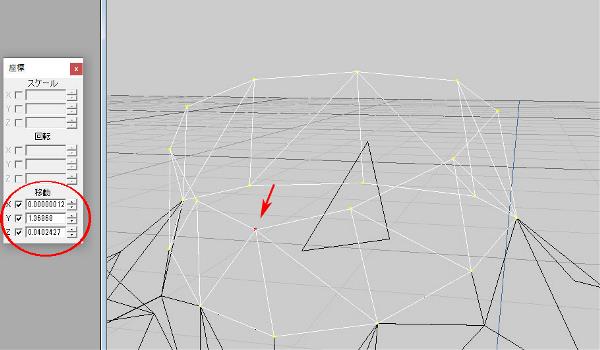

Select one of the neck Vertex in the <Perspective> window.

Enter the value of the coordinates of the copied Vertex of the neck in the Coordinates window.

Administrator 3/7/2022 7:44:13 PM ID:80te1ogQrkgJtD00000

This operation is performed on all the Vertex of the neck.

Administrator 3/7/2022 7:44:27 PM ID:80te1ogQrk14n000000

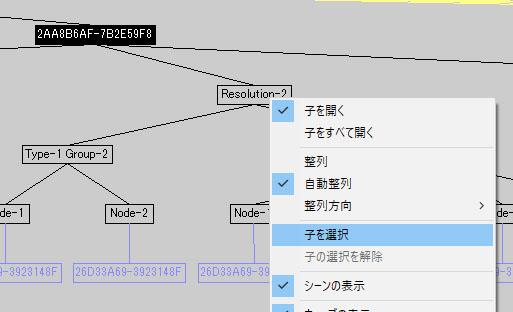

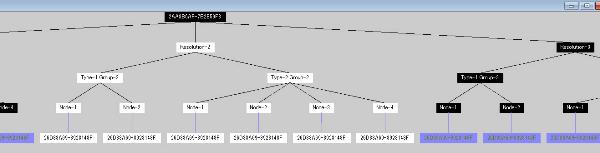

In the <Schematic> window, right mouse click on [Resolution-2] and select [Child select].

Select [Show] from the Operation menu.

Administrator 3/7/2022 7:44:39 PM ID:80te1ogQrkuLr000000

This operation is also performed for [Resolution-3].

Administrator 3/7/2022 7:44:50 PM ID:80te1ogQrka1JD00000

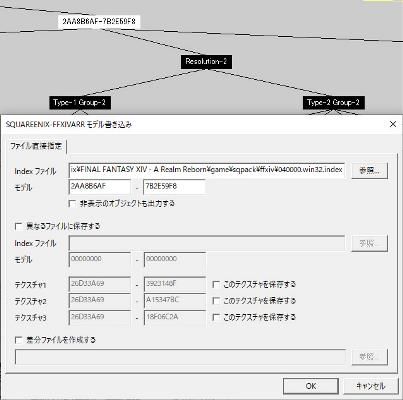

Select and save [2AA8B6AF-7B2E59F8] in the <Schematic> window.

Index file : (ffxiv install folder)\game\sqpack\ffxiv\040000.win32.index
Model : 2AA8B6AF-7B2E59F8

The hidden Original can be deleted, but in this example it is left in place.
It is excluded because [Hidden object is output] is unchecked in Model Writing.

Administrator 3/7/2022 7:45:03 PM ID:80te1ogQr18qpD00000

Launch FFXIVARR Viewer.

‹‹

‹

(
